PREMIUM SLIDING SYSTEM
Vista Pro Series
A refined aluminium sliding window and door system with clean lines and flexible track options.
THE WAY WE LIVE
One design language.
Six possibilities.
Vista Pro Series
Aluminium Sliding Window System
The Vista Pro Series is a premium slim aluminium system for modern sliding windows and doors. Its 40 mm frame depth delivers a clean appearance while supporting durability and smooth operation.
With secure locking options and flexible 2-track or 3-track configurations, Vista Pro suits weekend villas, institutional and commercial spaces, and modern homes.
System
overview.
An elegant profile with the strength to support larger openings.
The Vista Pro Series is built for modern commercial and residential spaces, pairing a 40 mm frame depth with smooth operation and secure locking options.
- Series name
- Vista Pro Series
- Application
- Sliding doors and windows
- Design style
- Slim German profile
- Material
- High-grade aluminium
Configurations
& details.

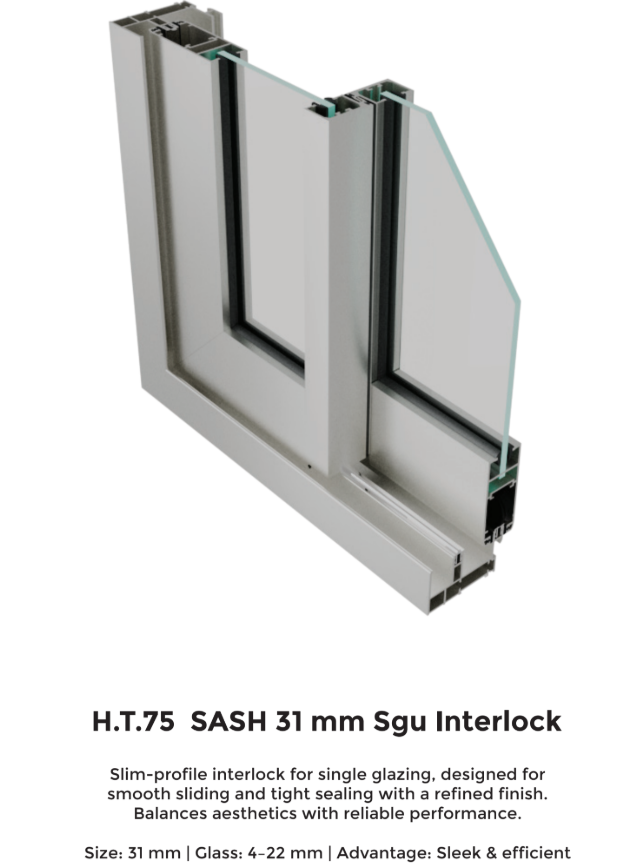

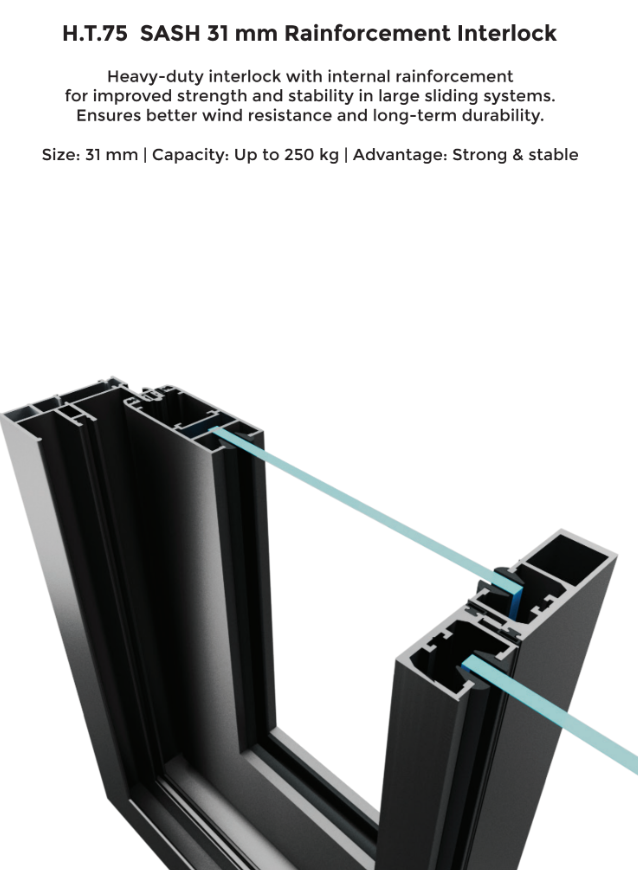

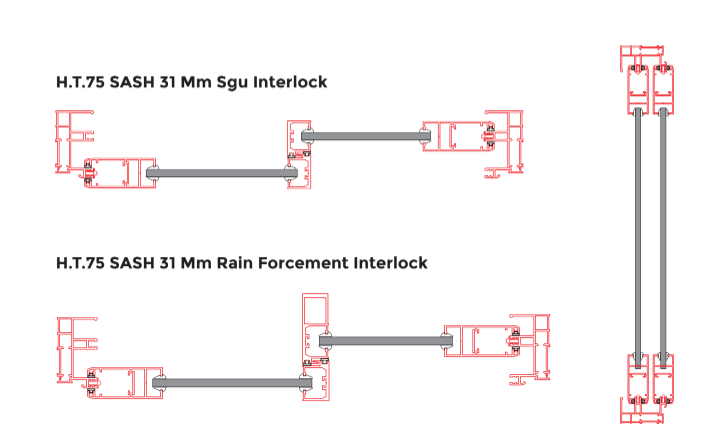

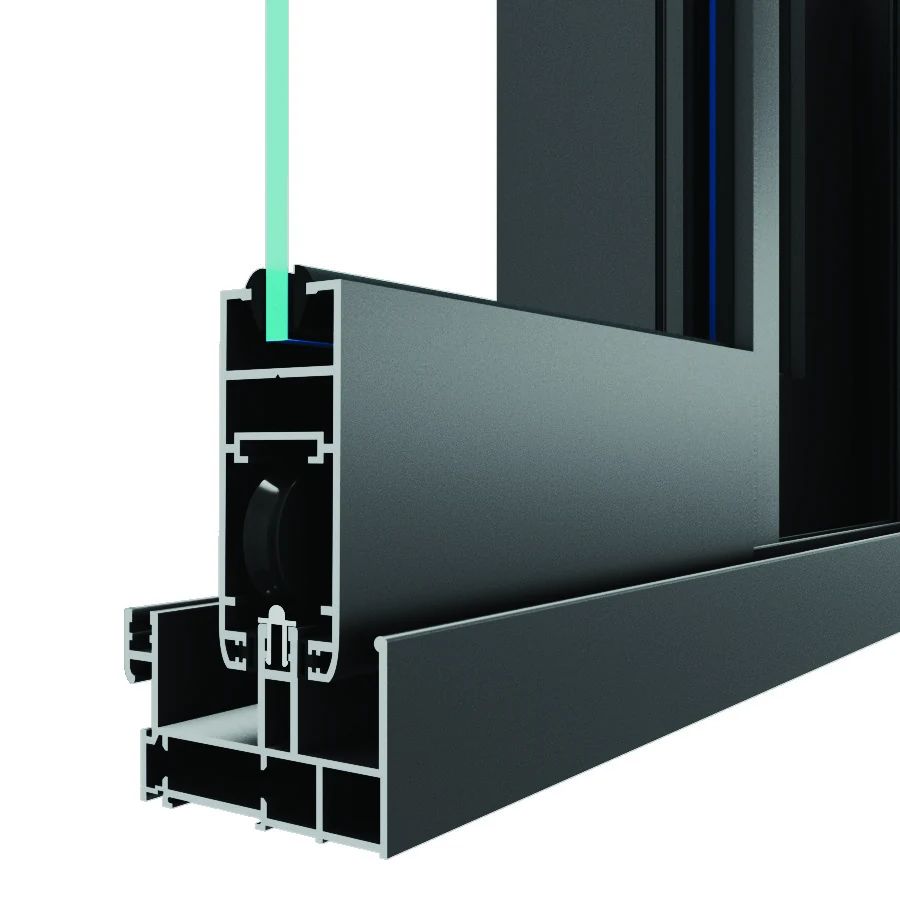

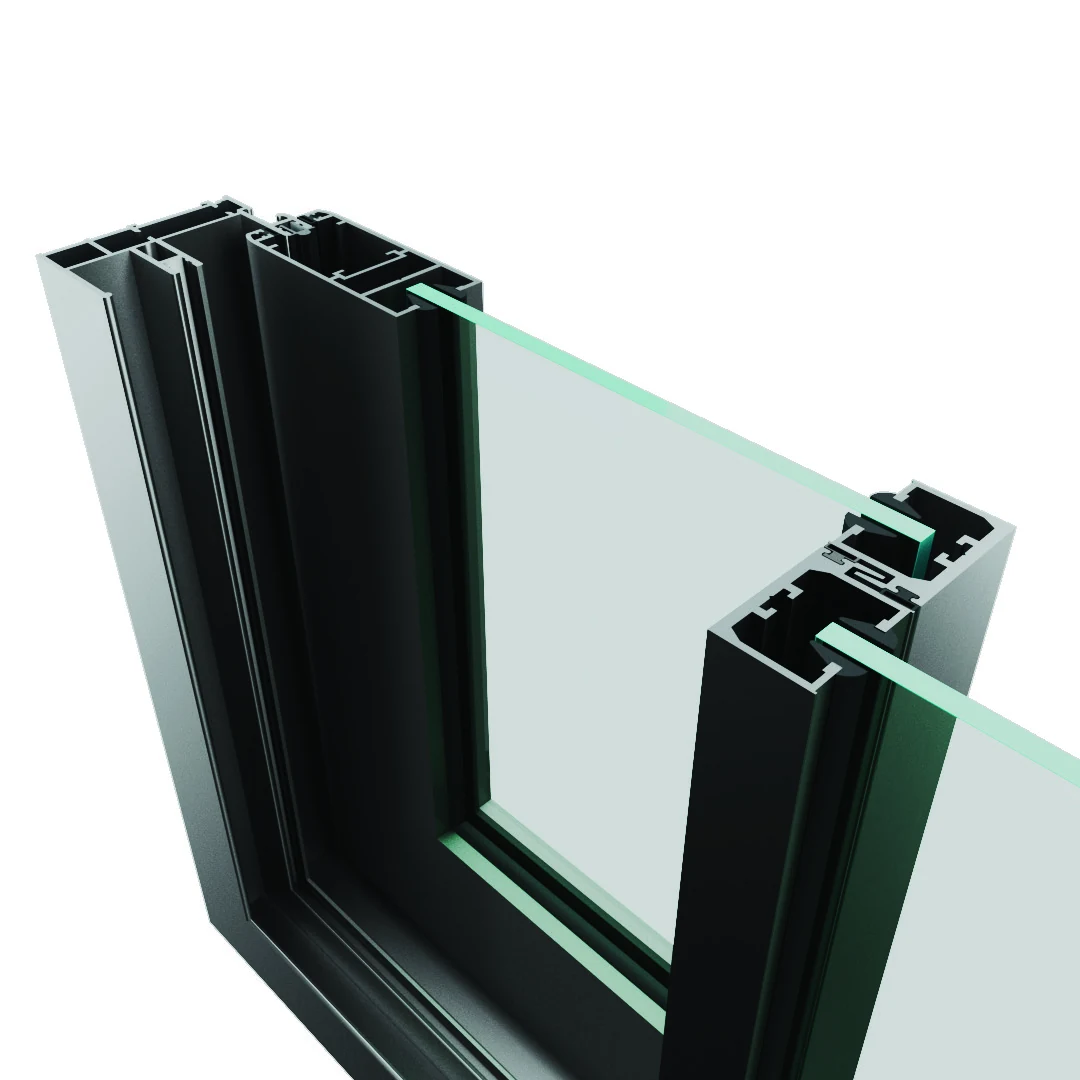

Explore the system from different angles. This gallery features configuration views, technical profile drawings, and typologies.
Technical
specifications.
Clear, verified engineering information for architects, structural consultants, and fabricators specifying this system.
- System type
- Sliding window and door
- Frame depth
- 40 mm
- Glass thickness
- 4–22 mm
- Maximum height
- Up to 3.0 m
- Leaf capacity
- Up to 250 kg
- Vertical profile
- 24 mm
- Maximum leaf width
- 1,200 mm
- 2-track option
- 65 mm wide × 40 mm deep
- 3-track option
- 105 mm wide × 40 mm deep
Performance
& build.
Precise corner construction and dependable hardware support smooth use, safety, and a refined finish.
45° cut with corner connector
Imported high-quality hardware
Single or multi-point lock with handle
2-track: 65 × 40 mm; 3-track: 105 × 40 mm
Ideal
applications.
Key features.
A comprehensive view of the architectural details that make this system a reliable choice for demanding residential and commercial installations.
40 mm frame depth
Minimal visual profile
Smooth sliding operation
Up to 3.0 m height
Supports 4–22 mm glass
Single and multi-point locking
2-track and 3-track options
Reinforcement interlock option
