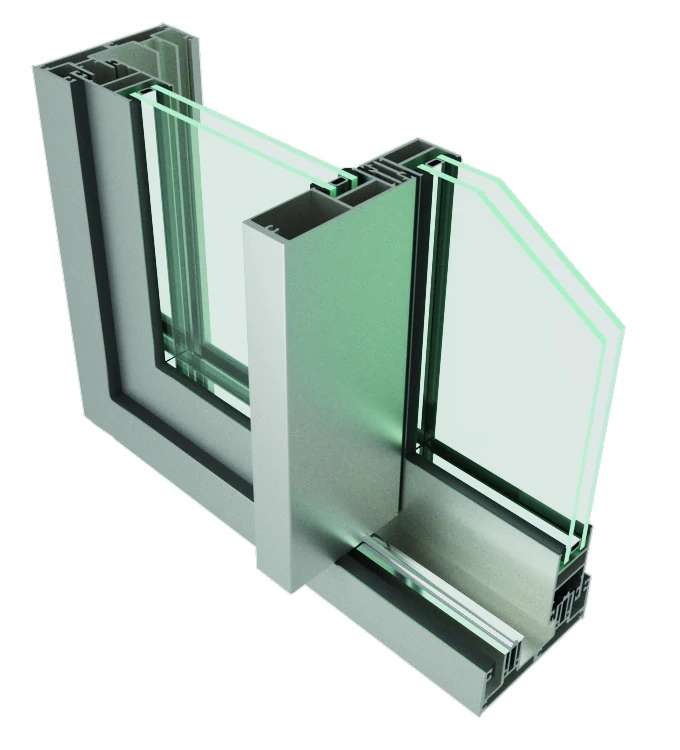

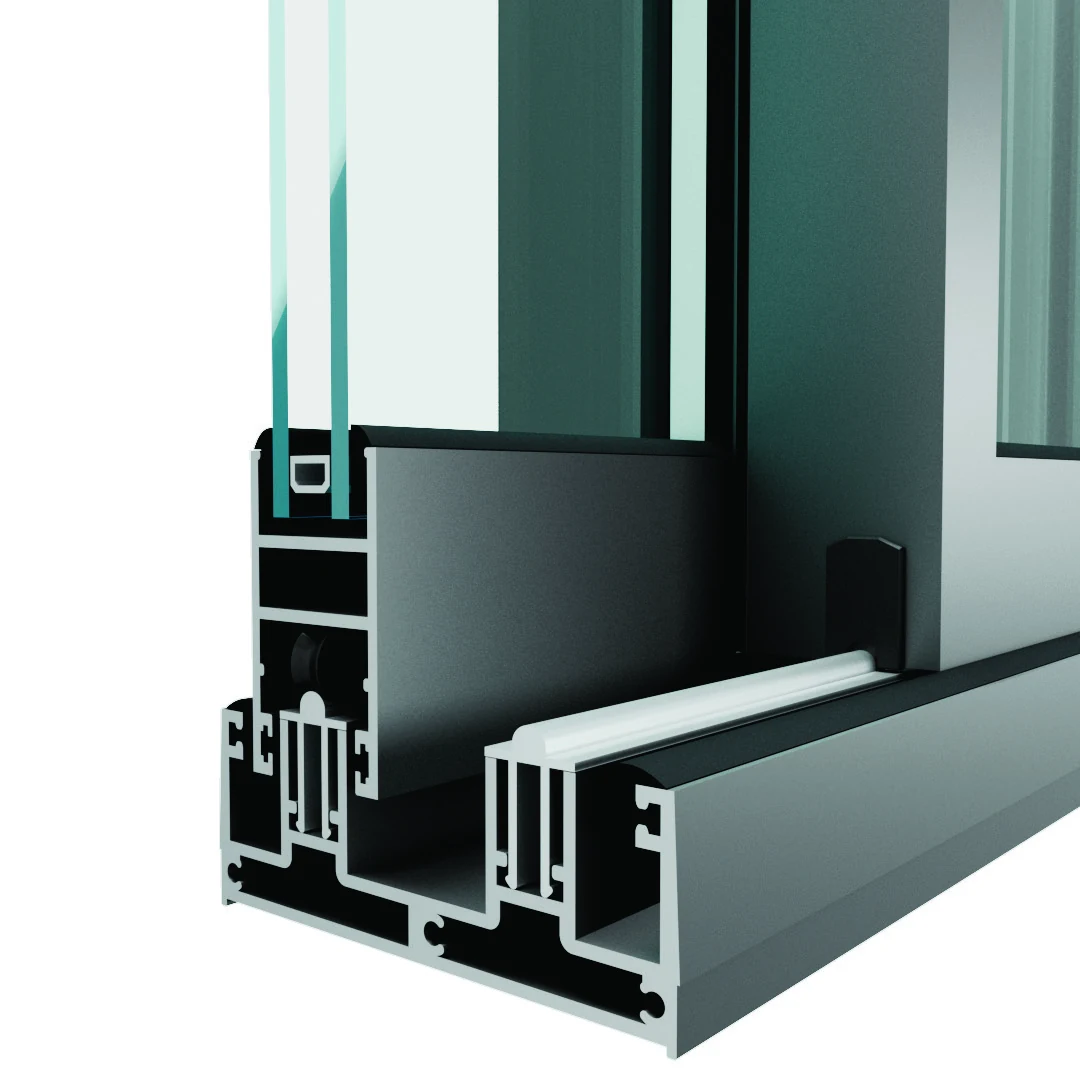

H.T.30 Series
Aluminium Sliding Window System
The H.T.30 High Performance Aluminium Sliding Window is specially designed for high-rise buildings, commercial towers, and luxury residential projects. Exclusive Villas requiring superior strength, durability, and smooth operation.
Manufactured using high-grade aluminium profiles, the H.T.30 series offers excellent wind load resistance, weather protection, and long-lasting performance, making it an ideal solution for modern architectural designs and tall structures.
System Overview
Series Name:
H.T.30 Series
Application:
Sliding Doors and Windows Systems
Design Style:
Slim German Profile
Material:
High-Grade Aluminium
Technical Specifications
Frame Depth:
35mm
Glass Thickness:
5mm – 24mm
Maximum Height:
Up to 3.5 meter
Weight Capacity:
Up to 300 Kg
2 Track System:
100 mm Width
3 Track System:
150 mm Width
Operation:
Smooth Sliding Operation
Key Features of H.T.30 Aluminium Sliding Window
- High Performance Aluminium Sliding Window System For High-Rise Buildings
- Heavy-Duty Aluminium Profiles For Structural Stability
- Strong Wind Load Resistance Suitable For Tall Towers
- Smooth And Silent Sliding Operation With Premium Rollers
- Superior Water & Air Tightness
- Corrosion-Resistant Aluminium Finish For Long Service Life
- Large Glass Panel Compatibility For Panoramic Views
- Custom Sizes And Finishes Available
Performance & Build
Corner Joint:
90° Corner Connector
Sealing Overlap:
6mm with Gasket
Hardware:
Imported High-Quality Hardware
Locking Type:
Single & Multi-Point Lock with Handle
Ideal For
- High-Rise Residential Buildings
- Commercial & Corporate Towers
- Luxury Apartments & Villas
- Hotels & Mixed-Use Developments
Dimensions
Vertical Profile:
28 mm sleek
Max. Leaf Height:
35 mm
Max. Leaf Width:
1200 mm
Max. Weight:
300 kg
Glass Thickness:
24 mm

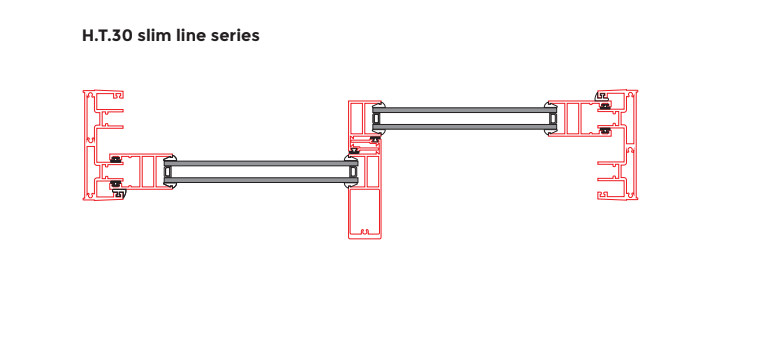

Technical Drawing

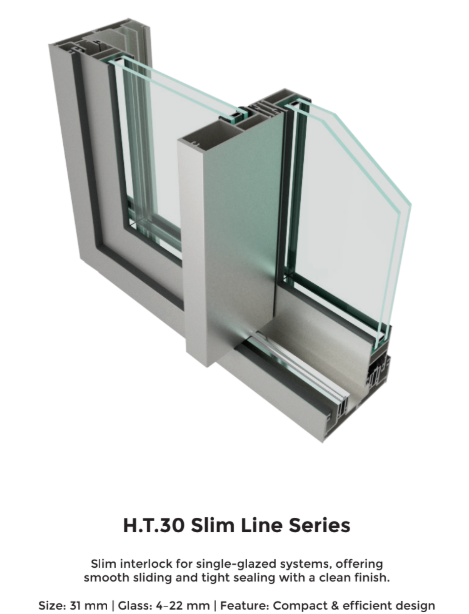

H.T.30 Slim Line Series
