SLIM SLIDING SYSTEM
Vista Series
A precise aluminium sliding system for light-filled offices, commercial spaces, and contemporary homes.
THE WAY WE LIVE
One design language.
Six possibilities.
Vista Series
Slim Aluminium Sliding Window and Door System
The Vista Series is a slim aluminium system for modern sliding windows and doors. Its 40 mm frame depth creates a clean, minimal appearance while supporting strength and smooth performance.
Designed for offices, institutional and commercial spaces, and contemporary homes, Vista supports natural light, secure locking, and flexible 2-track or 3-track layouts.
System
overview.
A slim visual language with the strength to work every day.
The Vista Series pairs a 40 mm frame depth with sliding operation, secure locking options, and flexible 2-track or 3-track configurations.
- Series name
- Vista Series
- Application
- Sliding doors and windows
- Design style
- Slim German profile
- Material
- High-grade aluminium
Configurations
& details.

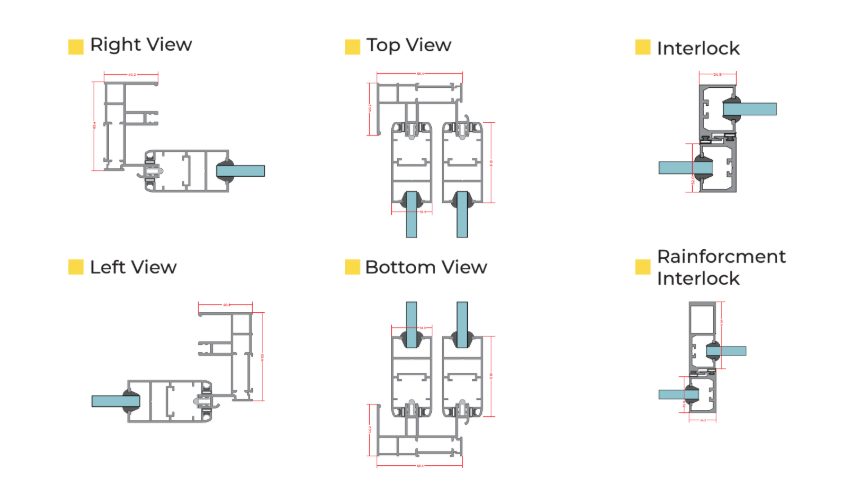

Explore the system from different angles. This gallery features configuration views, technical profile drawings, and typologies.
Technical
specifications.
Clear, verified engineering information for architects, structural consultants, and fabricators specifying this system.
- System type
- Sliding window and door
- Frame depth
- 40 mm
- Glass thickness
- 4–22 mm
- Maximum height
- Up to 2.4 m
- Leaf capacity
- Up to 250 kg
- Vertical profile
- 24 mm
- Maximum leaf width
- 1,200 mm
- 2-track option
- 65 mm wide × 40 mm deep
- 3-track option
- 105 mm wide × 40 mm deep
Performance
& build.
Carefully joined aluminium, imported hardware, and secure locking deliver reliable performance with a slim visual profile.
45° cut with corner connector
Imported high-quality hardware
Single or multi-point lock with handle
2-track: 65 × 40 mm; 3-track: 105 × 40 mm
Ideal
applications.
Key features.
A comprehensive view of the architectural details that make this system a reliable choice for demanding residential and commercial installations.
40 mm frame depth
Slim architectural profile
Smooth sliding operation
Supports 4–22 mm glass
Up to 2.4 m height
Single and multi-point locking
2-track and 3-track options
Heavy-duty reinforcement option
